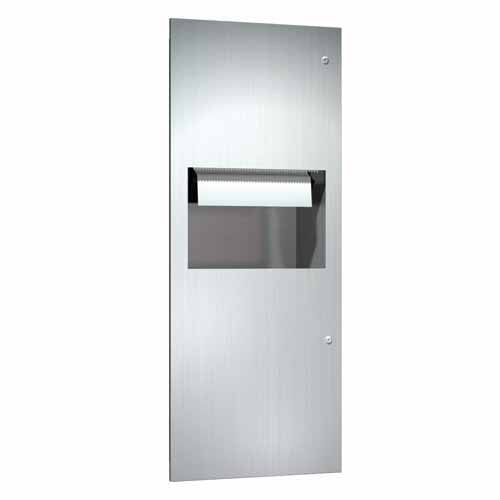

Automatic Recessed Paper Towel Dispenser and Waste Recepticle - Model 64696A

Recessed combination unit includes automatic paper towel dispenser and waste receptacle.  Combination unit is built with 304 stainless steel and has a #4 satin finish.

Click here for Specifications              Click here for Warranty

This combination unit with an automatic paper towel dispenser and a waste receptacle comes in three models  The recessed model 64696A requires a wall depth of 8 7/8 inches.  The semi-recessed model 64696A-6 is for standard 4 inch walls.  This unit is also available as a surface mounted model 64696A-9.

Doors shall be fabricated of 18 gauge type 304 stainless steel with a #4 satin finish.  Full face of door to project 1⁄2" (13 mm) from wall.  And hinged at sides by a concealed heavy duty 3⁄16" (5 mm) diameter stainless steel piano hinge.  Recessed combination unit shall be fabricated of 20 gauge type 304 stainless steel with a 1" (25 mm) side perimeter trim which lays flat against wall. All doors shall be provided with a tumbler lock keyed alike.

64696A AUTOMATIC ROLL PAPER TOWEL DISPENSER AND WASTE RECEPTACLE Proximity sensing no-touch unit dispenses a pre-set length per cycle from 8” or 9” (205 or 230 mm) wide, 800 ft. (244 m) long rolls. 8.6 gal. (32.6 L) stainless steel waste receptacle.  Battery operated (4) D-size.  64696A-6 (Not Shown) Similar to 64696A, but with stainless steel collar for semi-recessing in 4” (102 mm) walls. 64696A-9 (Not Shown) Similar to 64696A, but with a stainless steel collar for surface mounting.
