Description

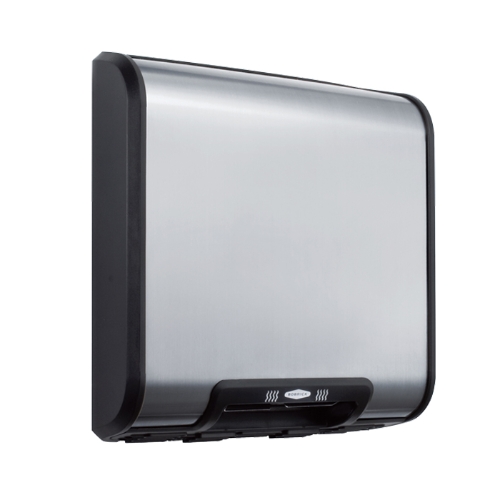

18-gauge, Type-304 stainless steel with #4 satin-finish vertical grain cover with UL 94-5A black plastic trim and side panels.

115V Model:

115V AC, 15 Amp, 1725 Watts, 50/60 Hz. Single Phase, cULus Listed

The 4" projection complies with ADA, barrier free requirements. The surface-mounted installation is ideal for additions or after-market renovations.

Designed with uniquely patented dual-flow parallax air ducts, the dryer provides a broad swirling circulation of air for a more comfortable and faster dry. With only 73 dBA, these dryers offer optimum balance of fast dry time and moderate sound level.

Touch-free, auto-sensor tuns dryer on when hands are placed under and off when hands are removed.

Limited warranty: motor brushes for 3 years; all other parts for 10 years.

Installation: Automatic hand dryers should be installed 15" (380mm) above any projection or horizontal surface which may interfere with the operation of the automatic sensor.

Barrier Free Guidelines: When a single dryer is installed in a washroom, it is recommended that the bottom of the dryer be located 38" to 40" (965 - 122mm) above the finish floor, with at least 30" x 48" (760 x 1220mm) of clear floor space centered in front of the unit to allow both left and right-hand wheelchair approaches. When, two or more dryers are installed, mount one as described above, and locate the other(s) at 41" to 48" (1040-1220mm), and alternate left and right-hand approaches.
